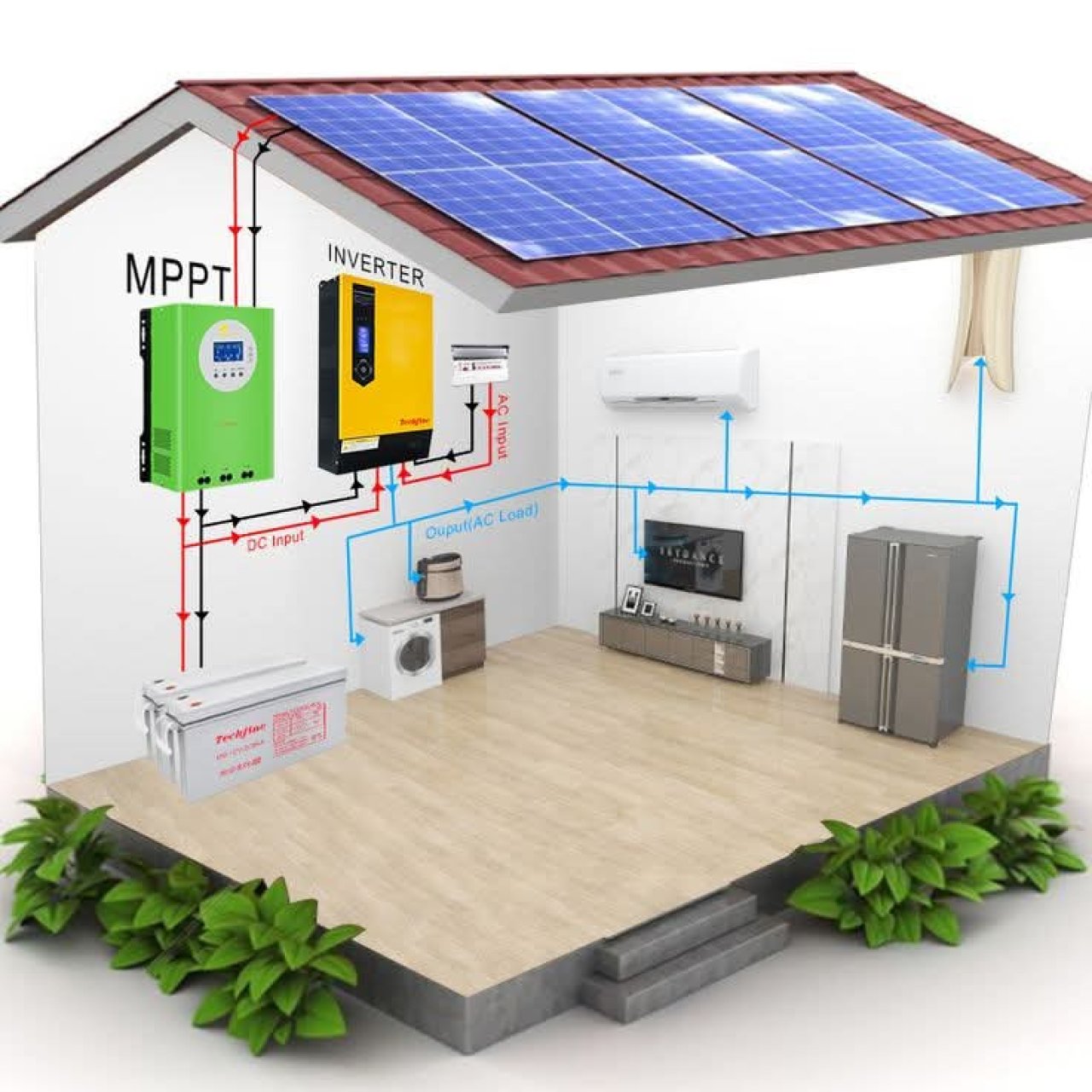

A solar-powered home system, demonstrating how solar panels on the roof generate electricity to power household appliances.
The system includes solar panels that convert sunlight into DC (direct current) electricity, which is then routed through an MPPT (Maximum Power Point Tracker) for optimal energy conversion.
The DC electricity flows into an inverter, which converts it into AC (alternating current) electricity for use by standard household devices.
A battery bank stores excess energy, allowing the system to supply power even when sunlight is unavailable, ensuring consistent energy availability.
The system powers various appliances, including a washing machine, air conditioning unit, refrigerator, and television, shown as part of a complete home setup.
The AC load distribution ensures that all connected devices receive electricity efficiently. This design highlights an eco-friendly and sustainable energy solution, reducing reliance on grid power while supporting energy independence.
Proper installation and system management ensure efficiency and longevity.
